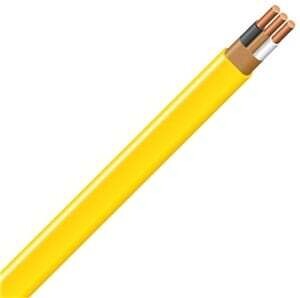

Inner conductors are type THHN, rated 90 deg C, 600 V. Solid strands. Outer jacket is PVC, rated at 75 deg C. Amp rating of the product is limited to that for 60 deg C rated conductors per the National Electric Code Article 336. Dwellings not exceeding 3 floors above grade. Exposed or concealed wiring. May be fished through walls, ceilings and masonry blocks. Use for new wiring or replacement wiring. Only for use in normally dry locations. UL listed.

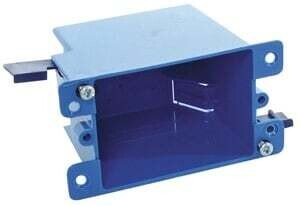

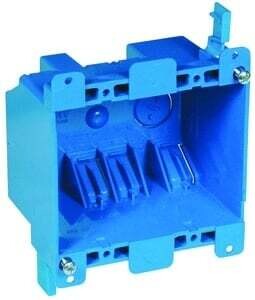

Old work wall case. Safe, non-conductive. Two zip-mount retainers. Four integral clamps, two each end, mounting ears. 14 cu-in, 2-3/4 in x 2-1/4 in x 4-1/8 in. UL listed.

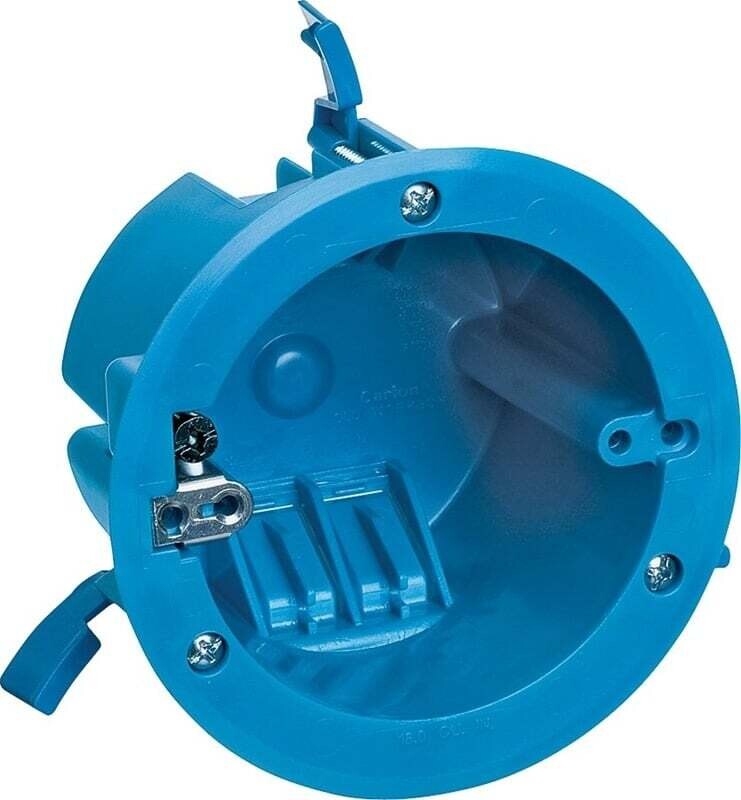

With mounting ears and 2 swing clamps. Suitable for masonry walls, UL listed, not UL Classified for fire resistance. 2-3/4 in D x 3-1/8 in x 3-15/16 in

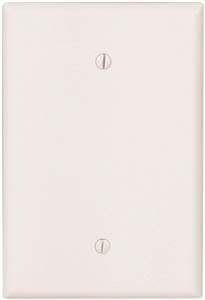

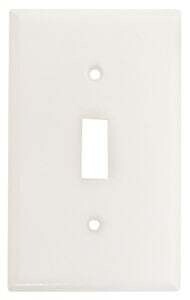

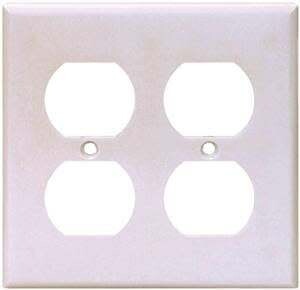

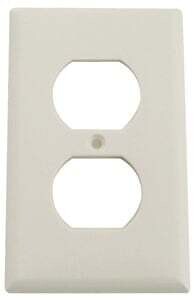

Flush fitting, warp-resistant design. Screw-catch feature holds mounting screws captive. Matching screws provided. High gloss finish is soil-resistant. Standard size - 4-1/2 x 4.563 in.

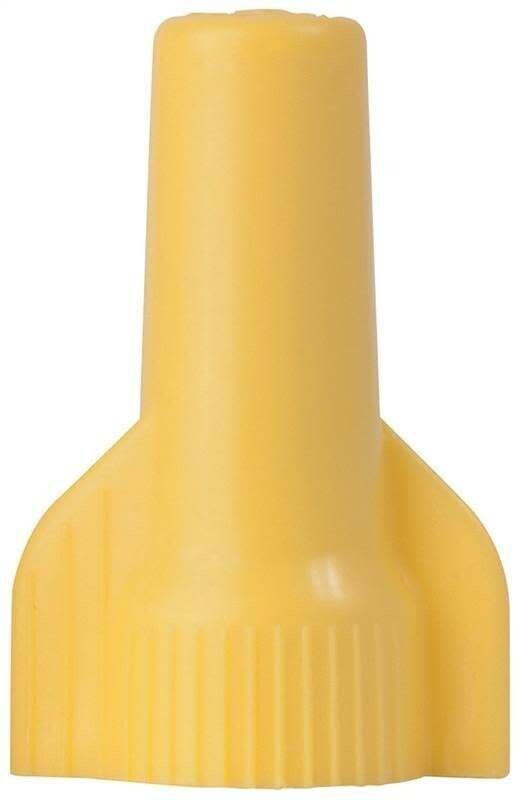

Gardner Bender wire connectors are engineered to exceed the expectations of professional electricians. Ideal for commercial or residential applications GB wire connectors offer world-class quality, performance and application versatility. Our connectors provide maximum application flexibility by offering contractors and do it yourselfers myriad packaging options, ergonomic designs and wire ranges.
Gardner Bender wire connectors are engineered to exceed the expectations of professional electricians. Ideal for commercial or residential applications GB wire connectors offer world-class quality, performance and application versatility. Our connectors provide maximum application flexibility by offering contractors and do it yourselfers myriad packaging options, ergonomic designs and wire ranges.

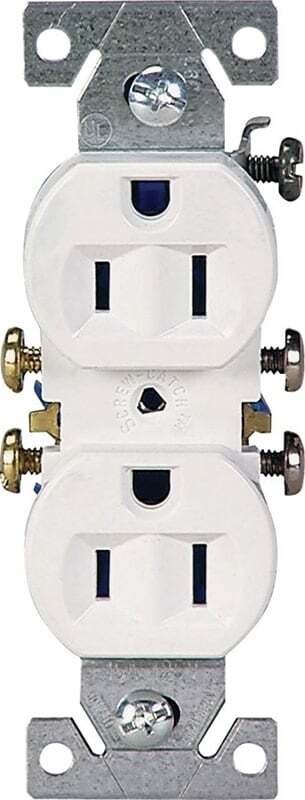

Standard duplex receptacles feature longer, wider straps providing 40% more contact area to the wallboard. Virtually eliminates floating installations. Patented built-in wire stripper for #14 and #12 wire to speed installation. Patented built-in wire looper for pre-looping. Tri-combo screws accept slotted, Phillips and Robertson-head tools for installation flexibility. Terminal screws backed out - ready for wiring. Side wire terminals accept up to #10 solid or stranded wire. Push-in terminals accept #14 solid wire.
Longer, wider strap on toggle switches provides 40% more contact area to wallboard. Virtually eliminates floating installations. Industrial design cam-action mechanism insures quiet switch action. Patented built-in wire stripper for #14 and #12 wire to speed installation. Unbreakable top and bottom housing eliminates call-backs due to jobsite breakage. Patented built-in wire looper for pre-looping. Three-way switches feature additional push-in common termination for feed-through tapping. Push-in terminals accept #14 solid wire only. Side wire terminals accept up to #10 solid or stranded wire. Tri-combo screws accept slotted, Phillips and Robertson head tools for installations in both the US and Canada.

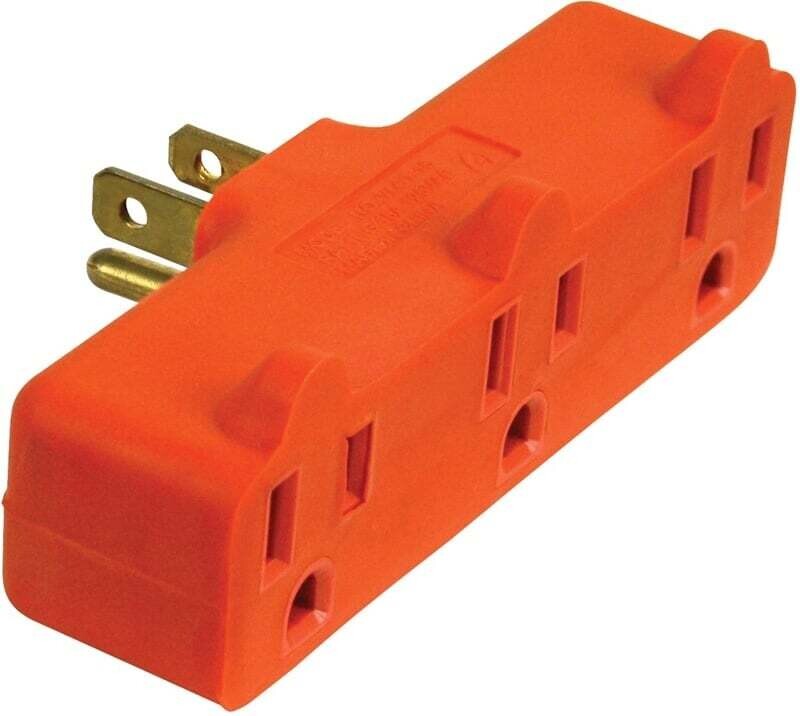

This 3-outlet adapter can plug directly into a wall-outlet or into a single-tap extension cord in order to provide power to 3 tools or appliances with a total load of 15 amps. It has the added advantage of the outlets being positioned at a 90° angle from each other to prevent oversized transformer type plugs from blocking the other outlets. 1875 Watts. 15 Amps. 125 Volts.

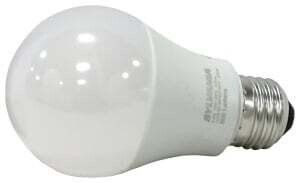

Rated up to 11,000 hrs at 70% lumen maintenance, Contractor Series LED A19 lamps offer years of service and reduce energy and maintenance costs. Contractor Series LED A19 lamps are environmentally preferred products.
